Steam boilers of RS series are manufactured in 0,25 to 5,5 t/h rated steaming capacity interval.
The boiler can be completed with any burner working at common species of liquid or gaseous fuel. The burner is mounted onto boiler’s hinged door that considerably simplifies both its control, and boiler’s control, as well as simplifies maintenance service without its dismantling.
Boilers are equipped with all the necessary equipment for safe operation off-line, including pumping groups, pressure, temperature, boiler water level safety assembly. Also, Boilers are equipped with electronic wall mounting control bar.
MAIN ADVANTAGES
- Сopper’s external isolation from high-quality aluminum plate.
- Operate on gaseous and liquid fuel, fulfilled in a process
combustion products transmission, with concentric arrangement of heating tubes. - Highly effective thermal insulation provides high heat-retaining capability and considerable heat loss reduction in the environment.
- The possibility to use any type of burner at the expense of a crossover flange and fettling construction design.
- The superheater installation possibility.
- Fuel economy at the expense of high efficiency factor

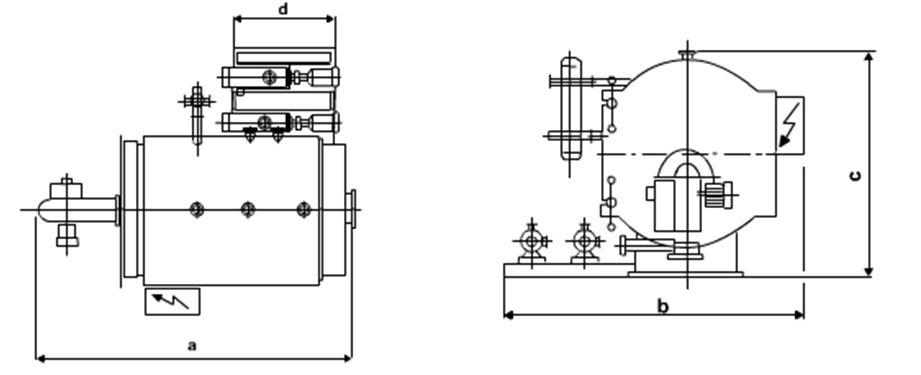

BOILER’S GENERAL VIEW
TECHNICAL SPECIFICATIONS
RS | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
---|---|---|---|---|---|---|---|---|
Паропроизводительность | кг/ч | 250 | 320 | 400 | 500 | 650 | 800 | 1000 |
Полезная мощность | кВт | 174 | 223 | 279 | 349 | 456 | 558 | 698 |
Мощность топки | кВт | 191 | 245 | 307 | 384 | 498 | 613 | 767 |
КПД при номинальной мощности | % | 91 | 91 | 91 | 91 | 91 | 91 | 91 |
Максимальная тепмература | °С | 191 | 191 | 191 | 191 | 191 | 191 | 191 |
Максимальное давление | бар | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
Аэродинамическое сопротивление топки | мбар | 1,2 | 1,5 | 2,5 | 2,5 | 3 | 3,5 | 5 |
Диаметр топки | мм | 450 | 450 | 500 | 500 | 550 | 550 | 600 |
Длина топки | мм | 1000 | 1000 | 1200 | 1200 | 1360 | 1360 | 1650 |
Длина головы сгорания горелки | мм | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
Высота | мм | 1500 | 1500 | 1585 | 1585 | 1688 | 1688 | 1751 |
Ширина (без обвеса) | мм | 1170 | 1170 | 1240 | 1240 | 1320 | 1320 | 1400 |
Длина | мм | 1863 | 1863 | 2183 | 2183 | 2388 | 2388 | 2573 |
Диаметр газохода | мм | 250 | 250 | 250 | 250 | 300 | 300 | 350 |
Вес без воды | кг | 1194 | 1194 | 1568 | 1586 | 1861 | 1861 | 2146 |
Объем воды | л | 510 | 510 | 750 | 750 | 930 | 930 | 1150 |
